Inicio /Productos/elevación portátil del coche/4 Post Car Parking Lift Car Parking Stacker for Garage 3600kg 2100mm Lifting Height

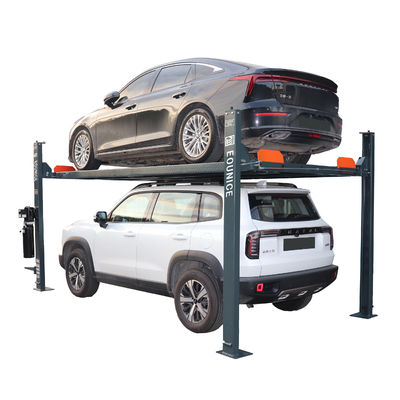

4 Post Car Parking Lift Car Parking Stacker for Garage 3600kg 2100mm Lifting Height

2sets
MOQ
2500$
Precio
4 Post Car Parking Lift Car Parking Stacker for Garage 3600kg 2100mm Lifting Height
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas

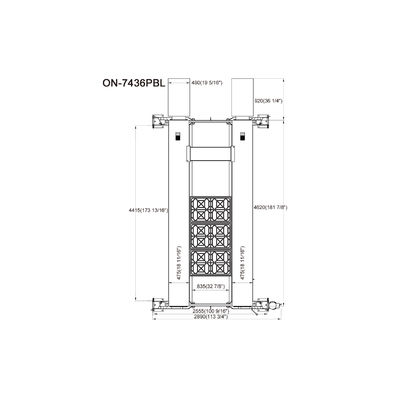

Especificaciones
Capacidad de levantamiento: 3600 kg
Tiempo de levantamiento: ≤ 50 s
Altura total: 2476 mm (97 1/4 ")
Altura de elevación: 2100 mm (82 11/16 ")

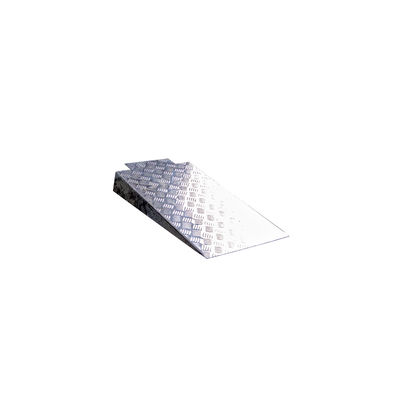

Duración total (rampas inc): 5540 mm (218 1/8 ")
Duración total (sin rampas): 4620 mm (181 7/8 ")
Ancho general: 2890 mm (113 3/4 ")
Ancho entre columnas: 2385 mm (93 7/8 ")
Información básica
Lugar de origen: PORCELANA
Nombre de la marca: WINTAI
Certificación: CE
Número de modelo: 7436pbl
Pago y Envío Términos
Detalles de empaquetado: Marco de acero
Tiempo de entrega: 5-15 días hábiles
Condiciones de pago: L/C, D/A, D/P, T/T, Moneygram, Western Union
Capacidad de la fuente: 500sets/mes
Descripción de producto

4 Post Car Parking Lift Car Parking Stacker for Garage 3600kg 2100mm lifting height


* 3,600Kg (8,000LBS.) lifting capacity.
* Single-point safety lock release by manual.
* Mechanical locks automatically engaged into position in ascending process.
* Out of level protection, safe and reliable.
* Self-lubricating pulleys and pre-tensioned wire rope for extended service life.

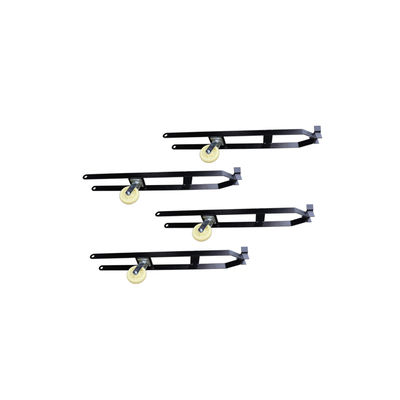

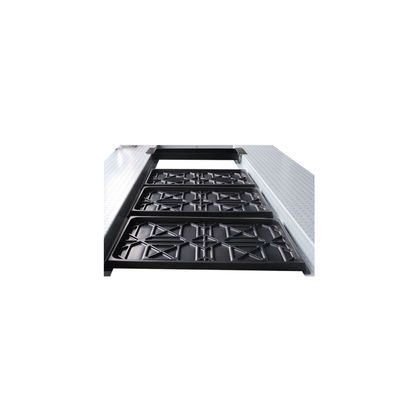

* Skid proof diamond platform.Standard with oil trays (3pcs), jack tray (1pc) and caster kits (4pcs).

* OEM/ODM service can be offered
Lift color can be offered as customer request.

1. The minimum ground height is 125mm(4 15/16”), which can effectively avoid the phenomenon of low chassis car hanging chassis.
2. The upper end of the column is suspended and the lower end is adjustable (adjustable range is 40mm), which can effectively
ensure the basic level of the two runways in the locked state and is less affected by ground factors.

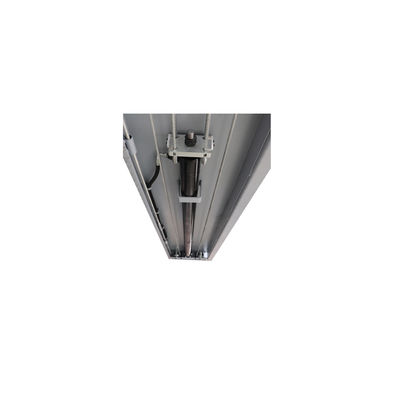

3. There are double insurance of manual safety and cable breaking safety inside the cross beam, and the reset device adopts
pressure spring and guide bar structure, even if the spring is broken due to the reason of guide bar, it can still be
effective to ensure the safety of use.
4. The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
5. Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can
ensure strong adhesion, bright color and beautiful.
4 Post Car Parking Lift Car Parking Stacker for Garage 3600kg 2100mm Lifting Height 0
4 Post Car Parking Lift Car Parking Stacker for Garage 3600kg 2100mm Lifting Height 1
4 Post Car Parking Lift Car Parking Stacker for Garage 3600kg 2100mm Lifting Height 2
